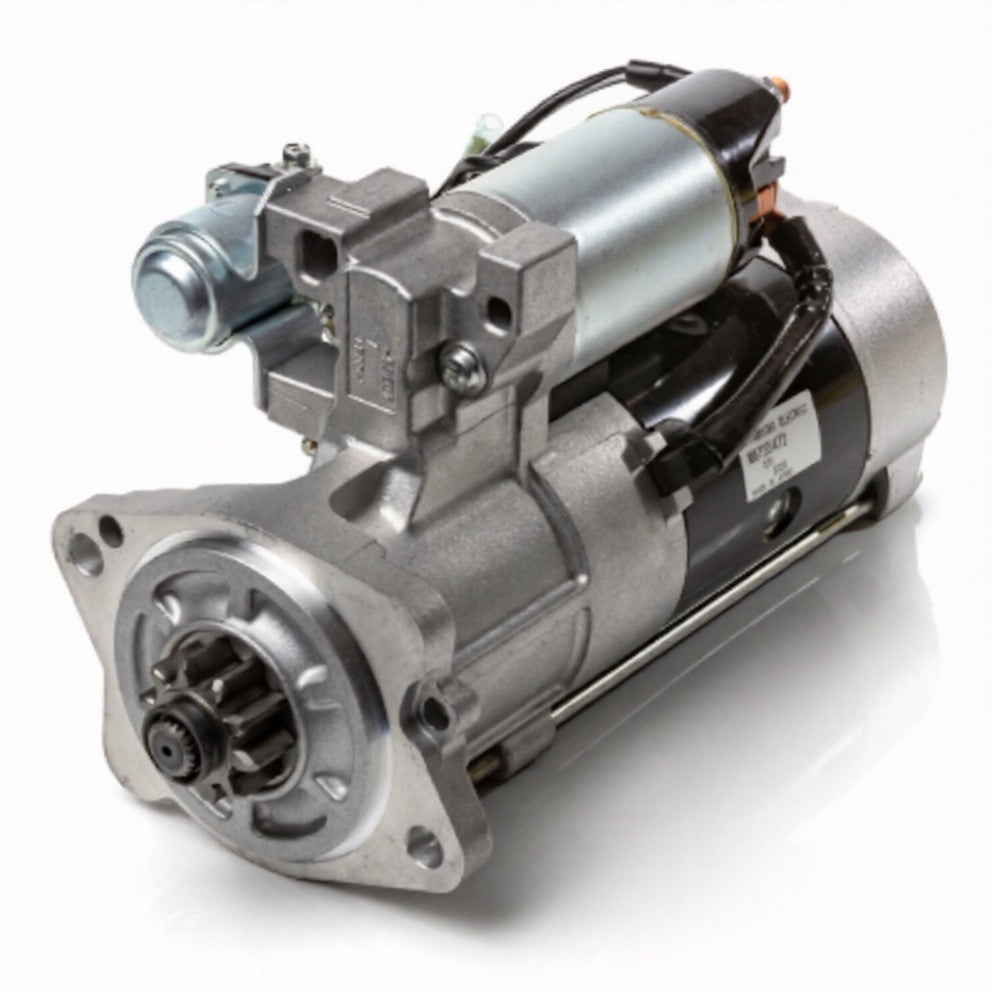

A forklift that won't crank brings everything to a stop — no lifting, no loading, no shipping. The good news: a failed starter is one of the more straightforward repairs on a forklift, and with the right part in hand, most mechanically inclined owners can swap one in an hour or two. Here's how to confirm the starter is actually the problem, how to replace it, and how to make sure you order the correct one.
Symptoms of a Failing Starter
- Single click, no crank — you turn the key, hear one click from the solenoid, and nothing happens
- Rapid clicking — often a weak battery, but can also be worn starter contacts
- Slow, labored cranking — dragging starter motor or failing brushes (after ruling out the battery)
- Grinding noise — the pinion gear isn't engaging the flywheel ring gear properly; worn pinion or ring gear teeth
- Starter spins but engine doesn't turn — failed starter drive (bendix)
- Intermittent no-start — works one day, dead the next; often dirty solenoid contacts or a flat spot on the armature
Rule Out the Cheap Stuff First
Before buying a starter, spend ten minutes confirming it's not something simpler:
- Battery: Check voltage — a healthy 12V battery should read around 12.6V at rest and stay above roughly 9.6V while cranking. Load-test it if you can.
- Cables and grounds: Corroded terminals and loose ground straps cause more "bad starter" misdiagnoses than anything else. Clean and tighten both battery terminals, the starter positive cable, and the engine ground.
- Safety interlocks: Forklifts have neutral safety switches and, on many models, seat switches that prevent cranking. Make sure the shifter is fully in neutral and the seat switch is functioning — a failed interlock mimics a dead starter perfectly.
- Bench check: If you pull the starter, most auto parts stores can bench-test it for free.
How to Replace a Forklift Starter
Safety first: disconnect the negative battery terminal before touching anything, chock the wheels, and set the parking brake. On LPG trucks, close the tank valve.
- Disconnect the battery — negative terminal first. This is non-negotiable; the starter's main cable is always live otherwise.
- Locate the starter. It's mounted where the engine meets the transmission bellhousing, usually low on one side of the engine. On many forklifts you'll access it from under the machine or through the floor plate — removing the floor plate often makes the job much easier.
- Photograph the wiring. Before removing anything, take a photo of the cable and wire positions — the thick battery cable on the main stud, and the smaller solenoid trigger wire.
- Disconnect the wiring. Remove the nut holding the main battery cable, then the solenoid wire.
- Unbolt the starter. Typically two or three bolts hold it to the bellhousing. Support the starter as you remove the last bolt — they're heavier than they look.
- Compare old and new. Before installing, set the two starters side by side: same mounting flange, same bolt pattern, same number of pinion teeth, same electrical stud positions. If anything differs, stop and verify the part number.
- Install the new starter. Seat it fully against the bellhousing before tightening the bolts — never use the bolts to pull it into place. Torque evenly.
- Reconnect wiring, then the battery (negative last).
- Test. The engine should crank smoothly with no grinding. If it grinds, stop immediately and re-check pinion tooth count and mounting.
Ordering the Right Starter
Starters are engine-specific, not just model-specific — and many forklift models used different engines over their production run. To get an exact match, gather:
- Engine model — this is the most important detail. Common forklift engines include the Toyota 4Y, Nissan K21/K25 and H20/H25, Mitsubishi 4G63/4G64/S4S, Mazda FE, GM 4.3L, and Kubota and Yanmar diesels. The engine model is on a tag or stamped on the block.
- Forklift model and serial number — from the data plate or frame stamp (see our guide on finding your model and serial number)
- The OEM number on the old starter — there's usually a part number on the starter housing or a tag; this is the fastest route to a guaranteed match
- Voltage — most IC forklifts are 12V, but verify
- Pinion tooth count — count the teeth on the small gear; a mismatch here destroys ring gears
One more tip: if your old starter died from oil contamination (a leaking rear main seal dripping onto it) or repeated heat soak, fix the underlying issue too — otherwise the new starter will meet the same fate.
