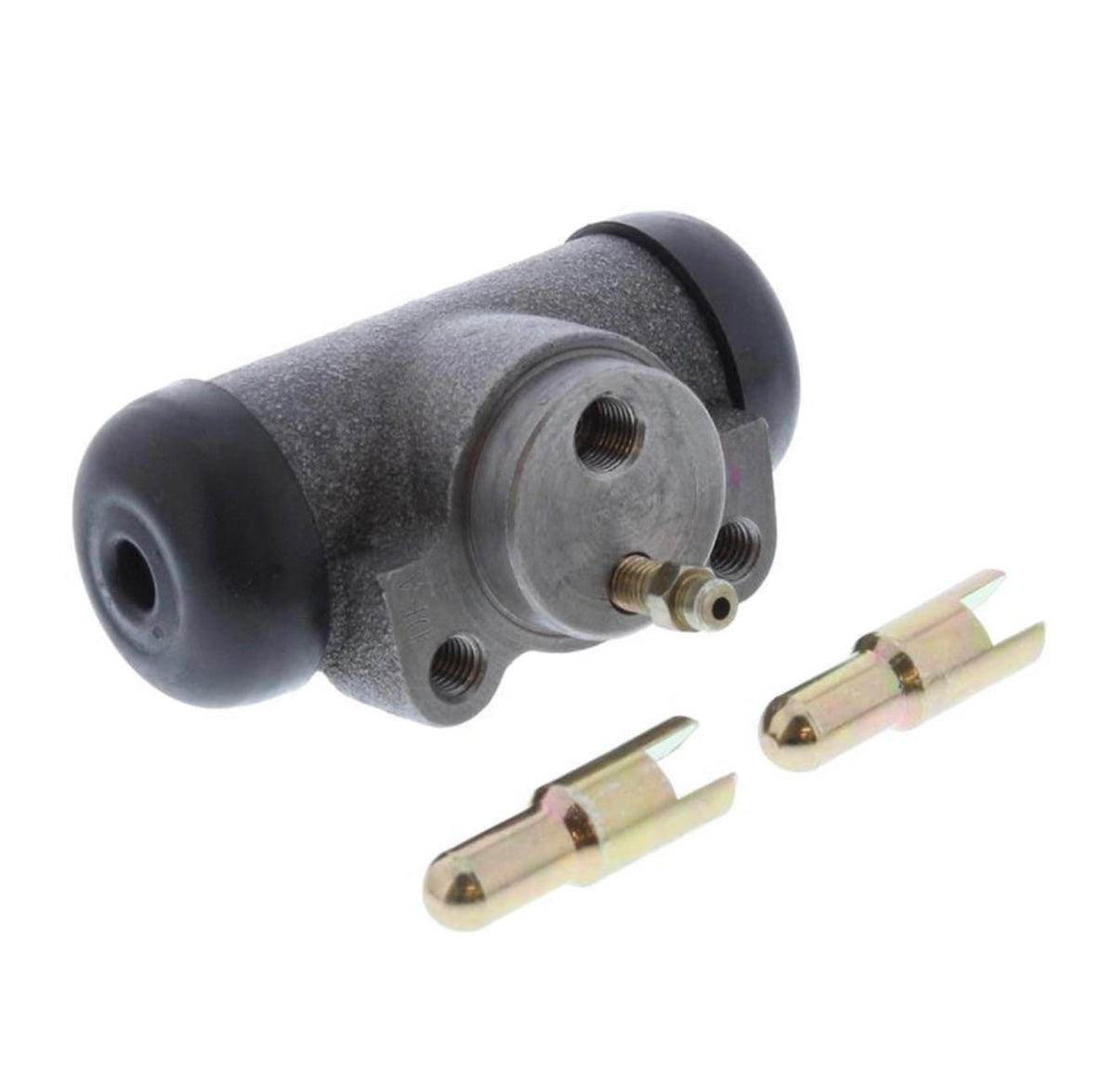

Forklift Wheel Cylinder 24433-76000G Brake Replacement New

Forklift Brake Wheel Cylinder 24433-76000G New Replacement

Replace a worn, leaking, or damaged wheel brake cylinder with this new aftermarket replacement brake wheel cylinder assembly for compatible forklift applications.

Product Details

• Condition: New
• Product: Brake Wheel Cylinder Assembly
• Part Number: 24433-76000G
• Application: Forklift
• Brake System: Wheel / Drum Brake
• Application Range: 3–3.5 Ton Forklift
• Type: Aftermarket Replacement

Part number 24433-76000G is documented as a complete wheel cylinder assembly for forklift brake systems. Parts catalogs show the assembly for 3–3.5 ton applications and identify the individual cylinder and internal components.

Assembly Components

The 24433-76000G wheel cylinder assembly is documented with components including:

• 24433-76010G — Wheel Cylinder
• 24433-76020G — Piston
• 24433-76030G — Piston Cup
• 24433-76040G — Spring
• 22673-72101 — Dust Boot
• 24433-76060G — Piston Rod
• 24433-76070G — Cylinder Plug
• 24433-76080G — Dust/Support Cover
• 24433-76090G — Bleeder Screw

Compatible Applications

The part number is documented for various 3–3.5 ton forklift brake assemblies, including applications associated with:

• CPCD30
• CPCD35
• CPQD30
• CPQD35
• FD30
• FD35
• FG30
• FG35

Exact fitment varies by forklift manufacturer, model, brake configuration, and serial number. (Scribd)

Features

• New aftermarket replacement
• Complete wheel cylinder assembly
• Designed for forklift drum-brake systems
• Helps replace leaking or damaged wheel cylinders
• Suitable for brake repair and maintenance
• Replacement for 24433-76000G

Important Fitment Information

Please verify your forklift make, model, serial number, brake configuration, cylinder dimensions, and original part number before ordering.

Brake components are safety-critical. Confirm proper fitment before installation and have the brake system inspected after repair.
