Item Description

Komatsu Forklift Brake Shoe Kit | FG20HT-16 | Shoes Hardware Seals & Wheel Cylinders

New Aftermarket Brake Service Kit designed for the Komatsu FG20HT-16 forklift with K25 engine . This comprehensive brake kit is intended for rebuilding the drum brake system and includes the major components needed for brake service, including brake shoes, hardware, seals, and wheel cylinders .

A complete brake overhaul can help restore proper braking performance on a forklift experiencing worn brake shoes, leaking wheel cylinders, damaged seals, or deteriorated brake hardware.

Compatible Forklift

• Komatsu FG20HT-16

• Engine: K25

• Gas/LPG forklift application

• Drum brake system

The FG20HT-16 is specifically listed with the K25 engine in published Komatsu parts applications.

Brake Shoe Information

The brake shoe portion of this kit corresponds to the commonly listed Komatsu brake shoe numbers:

• 3EB-K3-0203C

• 3EB-K3-02030

• 202190

• KO 202190-000

The 3EB-K3-0203C brake shoe is listed for the FG20HT-16 , along with other FG/FD-series Komatsu forklifts.

Wheel Cylinder

The kit also includes replacement wheel cylinder components for the drum brake system.

The commonly referenced wheel cylinder is:

• 3EB-30-41440

• 2 mounting holes

• Approximately 1-1/8" bore

• Approximately 3.07" cylinder housing length , excluding pushrod

• Approximately 1.34" neck diameter

• Includes pushrod

The 3EB-30-41440 wheel cylinder is specifically listed for the Komatsu FG20HT-16 with K25 engine .

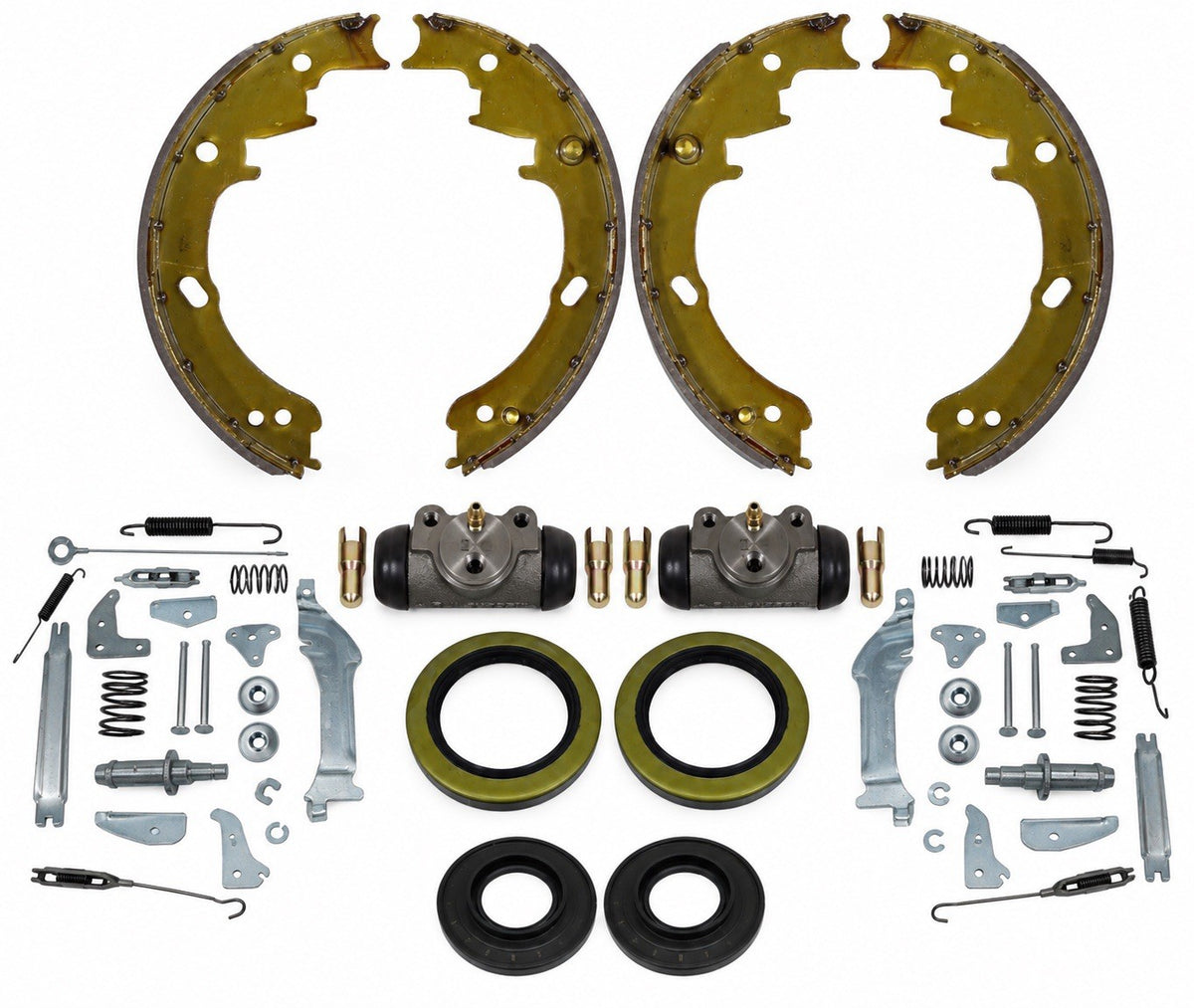

Kit Includes

Complete brake service kit includes:

• Brake shoes

• Brake shoe return/installation hardware

• Brake springs and related hardware

• Wheel cylinders

• Brake seals

• Brake system service components

Please compare the contents shown in the listing photos with your existing brake assembly before ordering.

Product Features

• New quality aftermarket brake components

• Designed for Komatsu FG20HT-16

• K25 engine application

• Complete brake service solution

• Includes brake shoes and brake hardware

• Includes wheel cylinders

• Includes seals

• Helps replace worn or contaminated brake components

• Convenient alternative to purchasing individual brake components separately

• Ideal for forklift repair, restoration, and preventative maintenance

Why Replace the Complete Brake Assembly?

When servicing an older forklift, replacing only the brake shoes may not resolve all braking problems. Wheel cylinders can develop leaks, seals can deteriorate, and springs and hardware can lose their proper tension.

Replacing the major wear and hydraulic components together can provide a more complete brake-system overhaul and help ensure the components work properly as a system.

Important Fitment Information

Please verify your forklift model, serial number, engine, brake configuration, and existing part numbers before ordering.

The FG20HT-16 is listed with the K25 engine , while similar-looking Komatsu models can use different brake components depending on model and configuration.

Please compare your existing components, including:

• Brake shoe size and configuration

• Wheel cylinder mounting

• Wheel cylinder bore

• Brake drum dimensions

• Spring and hardware configuration

• Seal configuration

• Forklift model and serial number

Do not rely on the forklift model alone to confirm fitment.

If you are unsure whether this brake kit is correct for your Komatsu forklift, please contact us with your model and serial number before purchasing.

Safety Notice

Brake components are safety-critical parts. Installation should be performed by a qualified technician familiar with forklift brake systems. After installation, the brake system should be properly adjusted, inspected, and tested before the forklift is returned to service.

Package Includes

• 1 × Brake Service Kit

• Brake Shoes

• Brake Hardware/Springs

• Wheel Cylinders

• Seals

Exact quantity of individual components should be verified against the product photos and kit configuration before installation.
