Toyota Forklift Alternator 27060-78003-71 | 6 Series | Round Plug

Toyota Forklift Alternator 27060-78003-71 | 6 Series | Round Plug | New

New Aftermarket Replacement Alternator

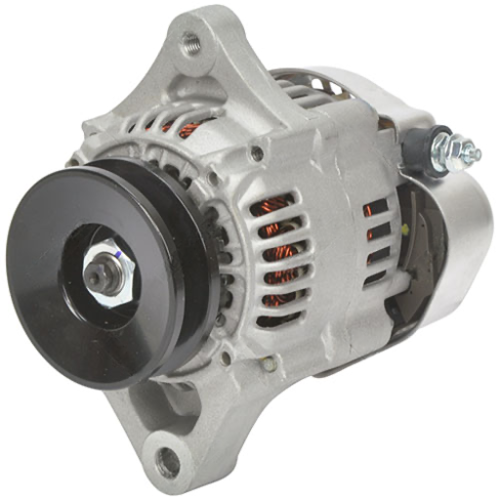

Replace a worn, failed, or weak charging system with this New Aftermarket Toyota Forklift Alternator, part number 27060-78003-71.

This alternator is designed for various Toyota 6-Series forklifts and is commonly cross-referenced to Denso 100211-4540. It features a single-groove V-belt pulley, clockwise rotation, and a 3-prong round regulator plug.

Part Information

Catalogs differ on the rated output, with some identifying this unit as 35A and others as 50A. Because of this discrepancy, verify the amperage rating and original alternator before ordering.

Compatible Toyota 6-Series Forklifts

This replacement alternator is listed for a variety of Toyota 6-Series applications, including:

Toyota 6FG Series

• 6FG10
• 6FG14
• 6FG15
• 6FG18
• 6FG20
• 6FG23
• 6FG25
• 6FG28
• 6FG30

Toyota 6FGL Series

• 6FGL10
• 6FGL14
• 6FGL15
• 6FGL18
• 6FGL20
• 6FGL23
• 6FGL25

Toyota 6FGC

• 6FGC25

Toyota 6FDL Diesel Applications

• 6FDL10
• 6FDL14
• 6FDL15
• 6FDL18
• 6FDL20
• 6FDL23
• 6FDL25

Published application data associates these forklifts with 4Y, 5K and V1512 engine configurations, depending on model.

Product Features

• New aftermarket replacement
• Designed for Toyota 6-Series forklifts
• Toyota replacement part 27060-78003-71
• Denso replacement/reference 100211-4540
• 12V charging-system application
• Clockwise rotation
• Single-groove V-belt pulley
• Approximately 74 mm pulley diameter

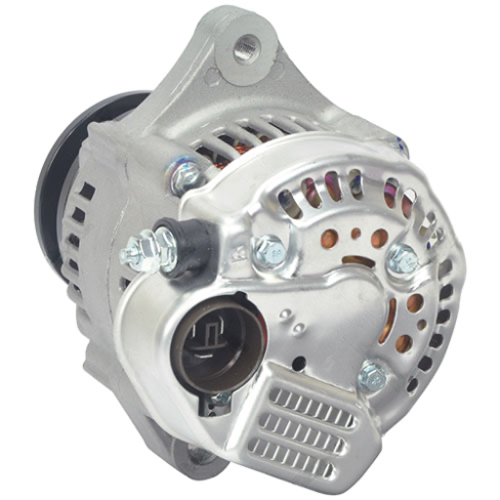

• 3-prong round regulator plug
• Internal regulator/internal fan design on listed applications
• Direct replacement-style construction

What Does the Alternator Do?

The alternator is responsible for producing electrical power while the forklift engine is running.

It helps:

• Recharge the forklift battery
• Maintain proper electrical system voltage
• Power lights and electrical accessories
• Supply current to the ignition and other electrical systems
• Maintain reliable operation of the forklift’s electrical components

A failing alternator may cause:

• Battery repeatedly going dead
• Charging warning light
• Weak electrical system
• Dim lights
• Difficulty starting
• Low charging voltage
• Battery not maintaining a charge

Cross-Reference Numbers

This alternator may be identified by the following numbers:

• Toyota 27060-78003-71
• 27060-78003
• 270607800371
• Denso 100211-4540
• Denso 100211-4540-
• 110629
• HELLA 8EL732735-001
• LUCAS LRA01719
• DELCO DRA3519
• Unipoint ALT-5301P

These numbers are provided for identification and cross-reference purposes.

Important Fitment Information

Please compare your original alternator before ordering.

This is especially important because Toyota used different alternator configurations across its forklift models and production years.

Verify:

• Original Toyota part number
• 27060-78003-71
• Plug configuration
• 3-prong round regulator plug
• Pulley type
• Single-groove pulley
• Pulley diameter
• Rotation
• Voltage
• Amperage/output rating
• Mounting configuration
• Forklift model
• Engine model
• Serial number

The round plug and mounting configuration should match your existing alternator.

Because published catalogs show different amperage ratings for this part number, verify the output rating on your original alternator before purchasing.

Installation

Alternator installation should be performed by a qualified technician.

Before installation:

• Disconnect the battery.
• Compare the replacement unit with the original.
• Verify pulley alignment.
• Verify the electrical plug and terminals.
• Inspect the drive belt for wear.
• Install the belt with proper tension.
• Confirm all electrical connections are secure.
• Check charging voltage after installation.

Do not operate the forklift if the alternator belt is loose, damaged, or improperly aligned.

Package Includes

1 × New Aftermarket Toyota Forklift Alternator

Part Number: 27060-78003-71

6-Series Application | 3-Prong Round Plug | 1-Groove Pulley
