Forks do the hardest work on a forklift, and they wear out quietly. Every pallet scrape, dragged tip, and overloaded lift removes a little steel, and a fork that looks fine from the driver's seat can be well past the point where it should be pulled. A fork failure under load is one of the more dangerous things that can happen on a warehouse floor, so knowing when to retire a set, and what to buy to replace it, is worth a few minutes.
How Often to Inspect
Forks should be looked over as part of the daily pre-shift walk-around, and checked more carefully on a regular schedule, commonly every few months, or sooner in heavy-use, multi-shift, or rough-environment operations. Facilities should follow their own written inspection procedure along with the fork manufacturer's guidance and applicable standards, including OSHA's powered industrial truck rules and the ITSDF/ANSI B56.1 standard. Any truck found unsafe must come out of service until the problem is fixed.
The 10% Wear Rule
The most widely used retirement criterion is blade thickness. Forks wear fastest at the heel, the bend where the blade meets the shank, because that is where the load and the floor contact concentrate. Measure the blade thickness at the heel with a fork caliper (or a standard caliper if you know where to look) and compare it to the original thickness stamped or listed for that fork. When the blade has worn to 90% of its original thickness, which is 10% wear, the fork should be removed from service and replaced, because the reduction in cross-section lowers its rated capacity.
| Original blade thickness | Minimum before replacement (90%) |
|---|---|
| 1-1/2" | 1.35" |
| 1-3/4" | 1.575" (about 1-9/16") |
| 2" | 1.80" |
| 2-1/2" | 2.25" |
If you cannot find the original thickness, the markings on the fork or the manufacturer's data will usually give it, and if they are worn off, that is itself a reason to replace.
Other Reasons to Pull a Fork
Thickness is not the only test. Retire a fork, or the whole pair, if you find any of the following:
- Cracks. Any crack, especially at the heel, weld areas, or the top hook, means the fork is done. Cracks cannot be safely repaired in the field.
- Bent or twisted blades. The blade and shank should sit at a true right angle. A fork that has been bent back or opened up, or that is visibly twisted, has been overstressed.
- Uneven tip height. If the two tips no longer sit at the same height when the forks are on the carriage, the pair can tilt a load or miss a pallet entry.
- Worn or damaged hooks. The top and bottom hooks that ride on the carriage bar wear and distort over time, and a loose fit lets the fork shift or fall off.
- Damaged positioning lock. A lock that no longer holds the fork in place can let it slide sideways during travel.
- Unreadable markings. If the capacity plate or markings are gone, you cannot confirm the rating.
- Heat damage or bad repairs. Forks that have been welded, heated, or modified outside manufacturer procedure should not stay in service.
Always Replace Forks as a Pair
Even if only one fork is worn out, replace both. A new fork beside a worn one gives uneven blade height and thickness, which affects how the load sits and how the weight is shared. Matching wear, length, and class on both sides keeps the load level and predictable.
What to Check Before You Buy Replacements
- Fork class. The carriage class (commonly Class II, III, or IV) sets the hook dimensions. A fork has to match the carriage, so check the class before anything else. Our guide to measuring and choosing the right fork class walks through it step by step.
- Dimensions. Thickness, width, and length should match what you have now, unless you are deliberately changing for a different pallet or load.
- Capacity. Make sure the pair's rated capacity meets or exceeds what the truck is rated to lift at its load center, and do not put forks on a truck they cannot match.
- Carriage type. Hook-type, shaft-mounted, and other fork styles are not interchangeable. Check how your forks attach.
- Specialty needs. Tapered, coil, or paper-handling tines are application-specific and need to match the job.
Cut Wear Down on the New Set
- Lift and lower with the tips clear of the floor, and do not drag forks across concrete.
- Enter pallets squarely and slowly instead of catching the stringers.
- Keep loads centered and never exceed the truck or fork rating.
- Do not use forks to push, pry, or drag.
- Record thickness at each scheduled inspection so you can see wear trending toward the limit.

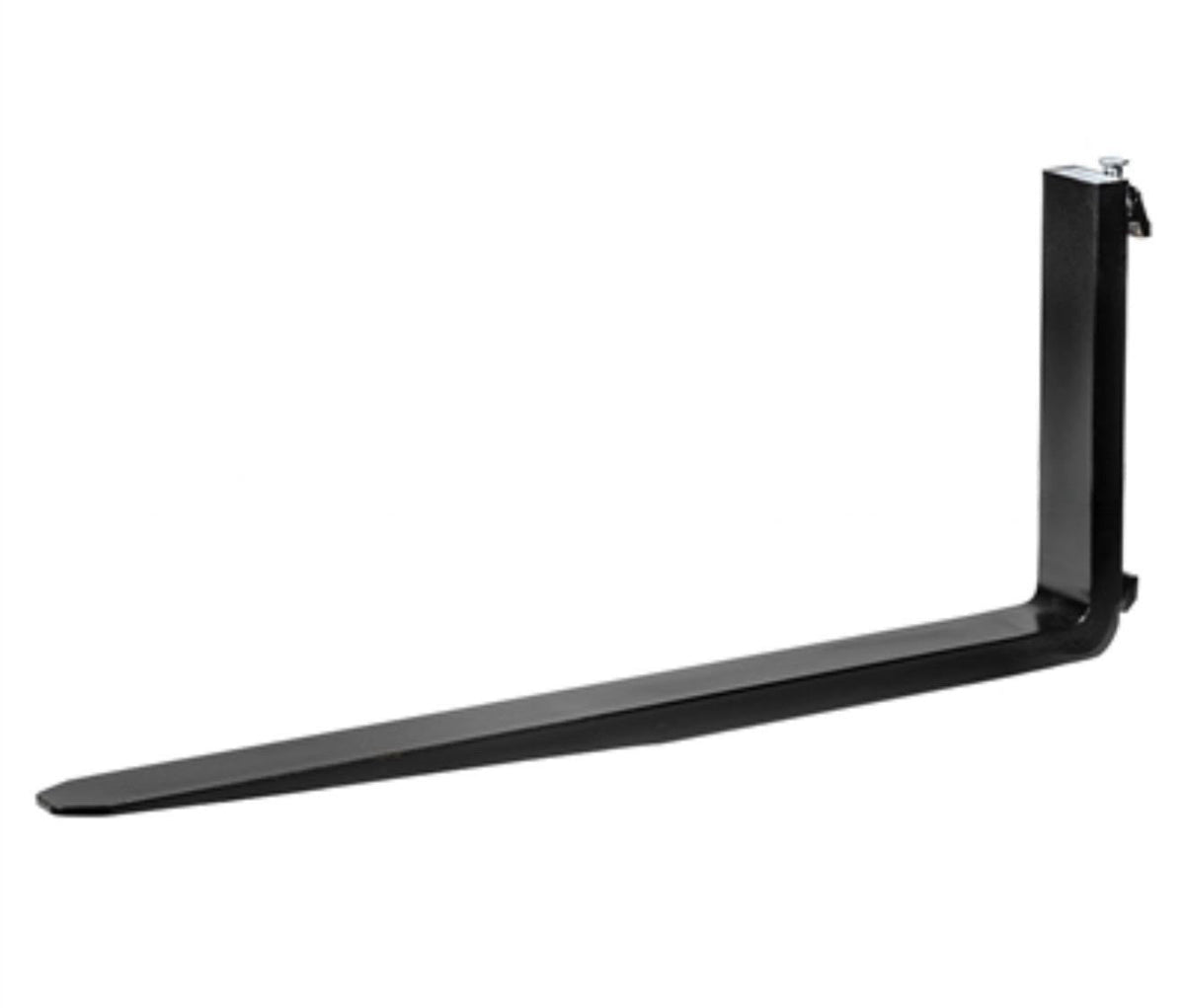

Replacement Forks in Stock
We carry new replacement pairs in several common sizes, including:
- New Class II 72" forks, 1-1/2 x 4 x 72
- New Class II 96" forks, 1-3/4 x 5 x 96
- New Class IV 8 ft forks, 2.5 x 6 x 96
Need a different size or class? Send us your current fork dimensions and carriage class and we will help match the right pair.
This article is general information and does not replace your fork manufacturer's inspection criteria, your facility's safety program, or applicable OSHA and ITSDF/ANSI requirements. When in doubt, take the fork out of service.
