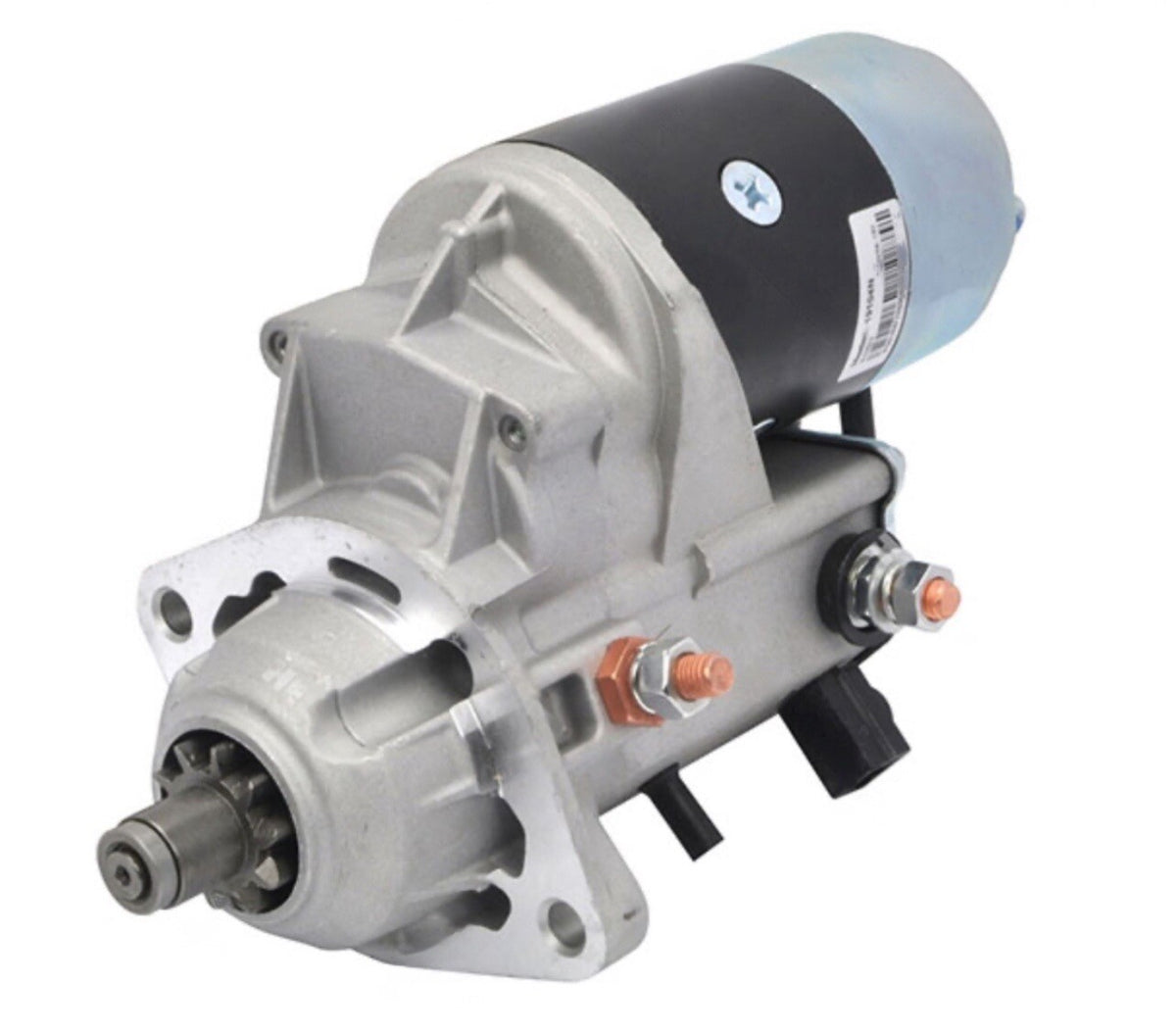

New Aftermarket Replacement Starter Motor

Replace a worn, failed, or damaged starter with this New Aftermarket Starter Motor designed for applicable Hyster and Yale forklifts equipped with Cummins engines.

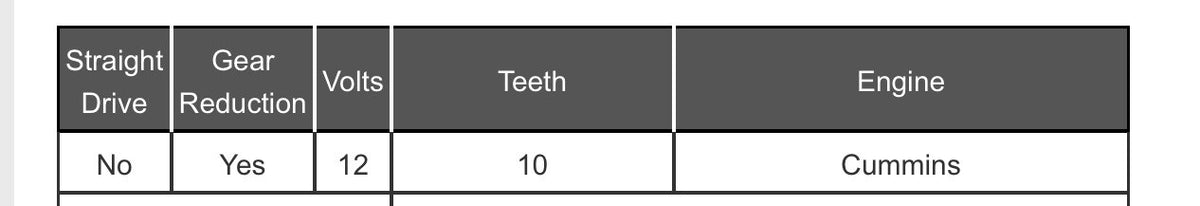

Hyster part 1654059 and Yale part 5800796-90 cross-reference to several Cummins and Denso starter numbers. Published specifications identify this starter as a 12V gear-reduction starter with 10 teeth and clockwise rotation.

Part Information

Specification Details

Condition New Aftermarket

Part Type Starter Motor

Hyster Part Number 1654059

Yale Part Number 5800796-90

Voltage 12V

Power Approx. 2.5-2.7 kW

Starter Type Gear Reduction / OSGR

Pinion Teeth 10 Tooth

Rotation Clockwise

Mounting Direct Flange

Quantity 1 Starter

Specifications vary slightly between catalogs, with published output ratings of approximately 2.5 kW and 2.7 kW. Verify the original starter before ordering.

Compatible Equipment

This starter is associated with various Hyster and Yale forklift applications using compatible Cummins engines.

Hyster applications documented for part 1654059 include:

* H135FT

* H155FT

* H6.0FT

* H7.0FT

* S135FT

* S155FT

* S6.0FT

* S7.0FT

Some of these applications are associated with specific serial prefixes, so serial-number verification is important.

The starter is also used across Cummins industrial engine applications, and compatibility should be confirmed by comparing the original starter and engine configuration.

Cummins Cross-Reference Applications

This starter is cross-referenced with Cummins numbers including:

* 3971610

* 3971613

* 3971614

* 3971615

Denso cross-references include:

* 428000-2870

* 428000-2910

* 428000-2920

* 428000-2911

* 428000-2900

Other aftermarket/reference numbers include 3190-6225, 70020352, 115362 and 190-6225.

Product Features

* New aftermarket replacement

* 12V electrical system

* Approx. 2.5-2.7 kW output

* 10-tooth starter gear

* Clockwise rotation

* Gear-reduction design

* Direct-mount flange

* Designed for applicable Cummins-powered forklifts

* Replacement for Hyster 1654059

* Replacement for Yale 5800796-90

* Suitable for Hyster, Yale and compatible Cummins applications

Starter Motor Function

The starter motor converts electrical power from the forklift battery into mechanical rotation to crank the engine during startup.

A failing starter may cause:

* Clicking when the key is turned

* Slow engine cranking

* No crank condition

* Intermittent starting

* Starter spinning without engaging

* Excessive starter noise

* Battery appearing weak despite being properly charged

Replacing a failed starter can restore reliable engine starting when the battery, cables, ignition switch and starting circuit are functioning properly.

Important Fitment Information

PLEASE VERIFY YOUR ORIGINAL STARTER BEFORE ORDERING.

Starter motors can vary by engine configuration, production year, mounting arrangement and electrical specifications.

Please compare:

* Hyster/Yale part number

* Cummins engine model

* Original starter number

* Voltage — 12V

* Pinion teeth — 10T

* Rotation — Clockwise

* Mounting bolt pattern

* Mounting flange

* Gear/pinion dimensions

* Electrical terminal configuration

* Starter overall dimensions

Do not rely solely on the forklift model or engine family for fitment.

Some Hyster applications have serial-number breaks, so the forklift serial number and original starter number should be verified before ordering. (Intella Parts)

Installation & Safety

Starter installation should be performed by a qualified technician.

Before installation:

* Disconnect the battery.

* Verify the replacement starter matches the original.

* Inspect battery cables and terminals.

* Check starter mounting surfaces.

* Verify proper gear engagement.

* Ensure all electrical connections are clean and tight.

* Confirm proper operation after installation.

Do not repeatedly crank an engine with a starter that is not engaging correctly, as this can damage the starter, flywheel or ring gear.

Package Includes

1 × New Aftermarket Starter Motor

Hyster Part Number: 1654059

Yale Part Number: 5800796-90

12V | 10 Tooth | Clockwise | Gear Reduction
